Dual Shaft Plastic Film Shredder Waste Recycling Two Shaft Shredder

Certification : CE ISO TUV

Brand Name : Xrido

Model Number : Customizable

MOQ : 1 set

Delivery Time : 5-30 word days

place of origin : China

plastic type : PVC, PET, PP/PE, PE, PP, PC, PMMA, PA, PS

brand name : Xrido

shaft design : Double

voltage : 380V/50HZ, 380V, 220V

dimension(l*w*h) : Custom

power (kw) : 55

weight (t) : 5

warranty : 1 Year

key selling points : Competitive Price

machinery test report : Provided

video outgoing-inspection : Provided

core components : Bearing, motor, Pump, Gear, PLC, Pressure vessel, Engine

Product name : Two Shaft Waste Recycling Shredder Machine

Input Size : 200-2200mm

Advantage : Easy Operation High Efficiency

Final product : standard-reaching rate is higher than 95%.

Usage : e-waste, plastic, metal, wood, waste rubber,copper,wood,fabric

Parts : Custom knife shaft and screen

Final product size : 1-10 Cm

Color : Customer's Requirement

Machine Type : Support Customization

Contact Now

Waste Plastic Barrel Plastic Film Double Shaft Shredder Machine

Products Description
Plastic shredder is the core pre-treatment equipment in the field of plastic recycling. It is mainly used to decompose various types of waste plastic products into small fragments or particles for subsequent melting and regeneration or direct processing and utilization. Plastic shredder uses mechanical shear force to crush plastic waste. It is suitable for processing large-diameter pipes (such as PE pipes), bundled films, plastic containers (bottles, barrels, boxes, etc.) and industrial scraps, etc. 26. Compared with traditional crushers, its blade shaft speed is lower, energy consumption is lower, and it can handle high-toughness materials (such as plastic ropes and films).

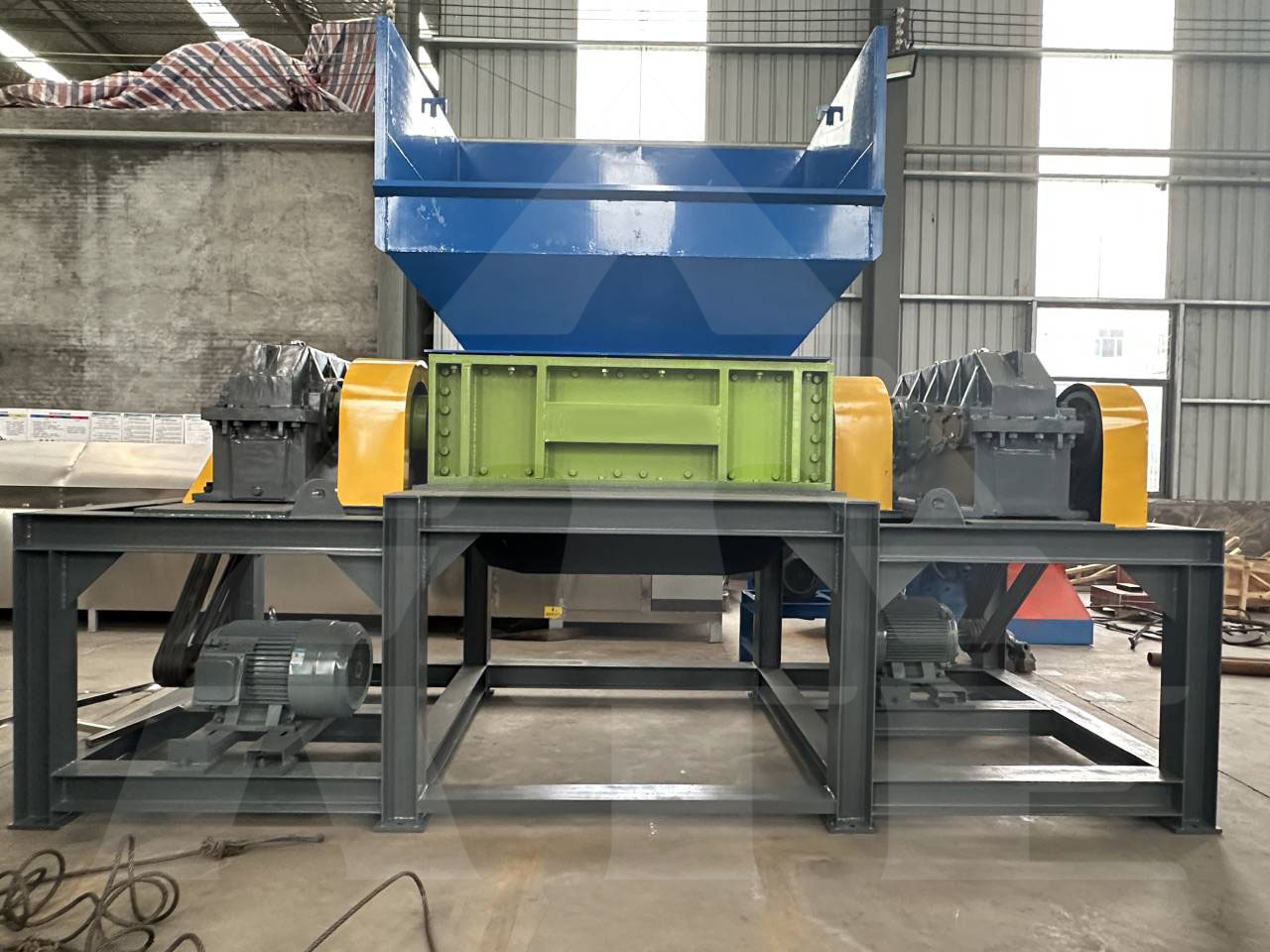

Dual Shaft Plastic Film Shredder Waste Recycling Two Shaft Shredder

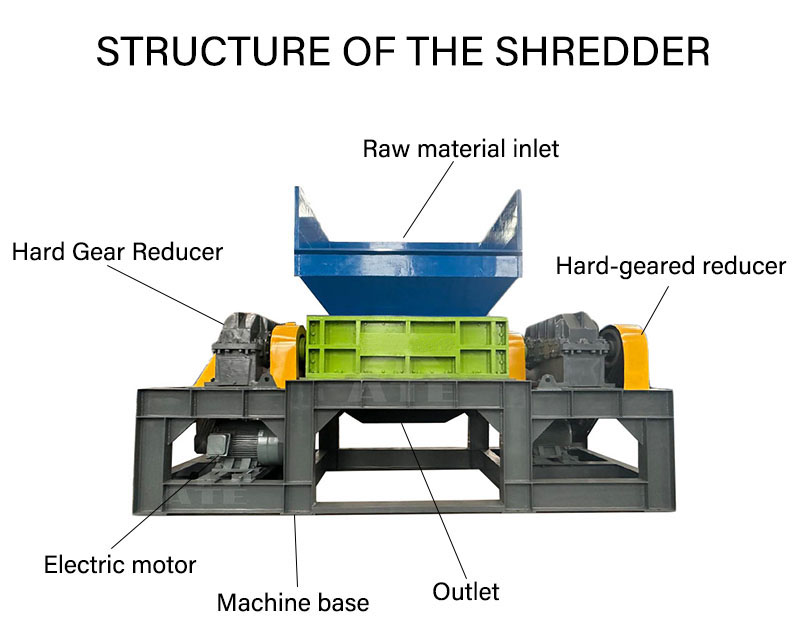

Double Shaft Shredder Machine
The Double Shaft Shredder can meet the waste recycling requirements of various industries, and is suitable for shredding thick and difficult materials, such as: electronic waste, plastic,tire, metal, wood, waste rubber, packaging barrels, pallets, etc.
Dual Shaft Plastic Film Shredder Waste Recycling Two Shaft Shredder
Model Crushing cavity size (mm)

blade diameter

(mm)

blade thickness

(mm)

 capacity (kg/h)

Power

(kw)

overall dimensions

(mm)

 Weight (t)
SZ-600 600×480 220 15/20/30/40/50 600-1000 15×2 2800×1300×1850 3.2
SZ-800 800×680 320 20/40/50 1000-1500 22×2 3000×1300×1850 4.5
SZ-1000 1000×680 320 20/40/50 2000-3000 30×2 3300×1500×2200 5.6
SZ-1200 1200×850 400 20/40/50/80/100 3000-5000 37×2 3600×1800×2200 9.8
SZ-1500 1500×850 400 20/40/50/80/100 5000-8000 45×2 4180×2000×2400 15
SZ-1800 1800×1200 500 30/50/100/150/200 8000-12000 75×2 5800×2400×2800 21
SZ-2000 2000×1500 600 50/100/150/200 12000-18000 90×2 6400×2700×3000 29
SZ-2200 2200×1500 600 50/100/150/200 15000-25000 110×2 6800×2700×3200 36
Advantages of plastic crusher:
1. Processing materials: Plastic shredders are more focused on the processing of plastic materials, while crushers are suitable for a wider range of material types,
2. Discharge particle size: Plastic shredders have a larger discharge particle size, which is suitable for occasions that require larger particle sizes; crushers have a smaller discharge particle size, which is suitable for occasions that require fine particle sizes.
3. Efficiency and energy consumption: Crusher usually has higher crushing efficiency, but the energy consumption is also relatively high; plastic shredders adopt a low speed, high torque design, and lower energy consumption.
4. Safety and environmental protection: Plastic shredders perform better in safety, noise control and dust pollution; crushers pay more attention to crushing efficiency and structural robustness.

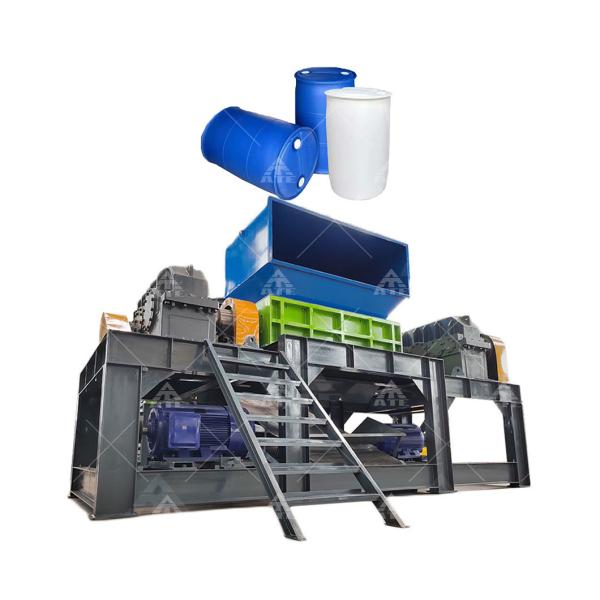

Dual Shaft Plastic Film Shredder Waste Recycling Two Shaft Shredder
Plastic shredder is a mechanical equipment specially used for crushing, tearing and reducing the volume of waste plastic materials (such as plastic products, scraps, pipes, films, etc.). Its core function is to mechanically decompose large or complex plastic waste into smaller pieces or particles for subsequent recycling, regeneration or reduction.
Main application scenarios of plastic shredders ‌
1. Plastic waste treatment: such as large-diameter PE pipes, bundled plastic films, machine head materials, etc. ‌,
2. Recycling: tear unqualified plastic products into pieces and melt them into granules for the production of plastic bottles, trash cans, etc. ‌
3. Organic solid waste treatment: including textile crushing (such as carpet recycling) and biofuel preparation.
Dual Shaft Plastic Film Shredder Waste Recycling Two Shaft Shredder
