Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price

Product Categories
Henan Xrido Environmetal Protection Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price

Certification : CE Certificate

Brand Name : Xrido

Model Number : Customizable

MOQ : 1

Delivery Time : 5-30 word days

place of origin : Henan, China

brand name : Xrido

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Engine, Bearing

warranty : 1 Year

power (kw) : 55

weight (kg) : 800

key selling points : Automatic

Capacity : 200-300kg/day, 300-500kg/day, 500-700kg/day, 700-900kg/day, 900-1100kg/day, 200-1000kg/h

Application : Aluminum-plastic Waste Treatment

Function : Separate Aluminum Steel

Voltage : 380V 50Hz 3Phase/Customized

Advantage : High-cost Efficiency

Separation rate : 99%

Feature : Easy Operation

Product Name : Eddy Current Separator

Contact Now

Products Description

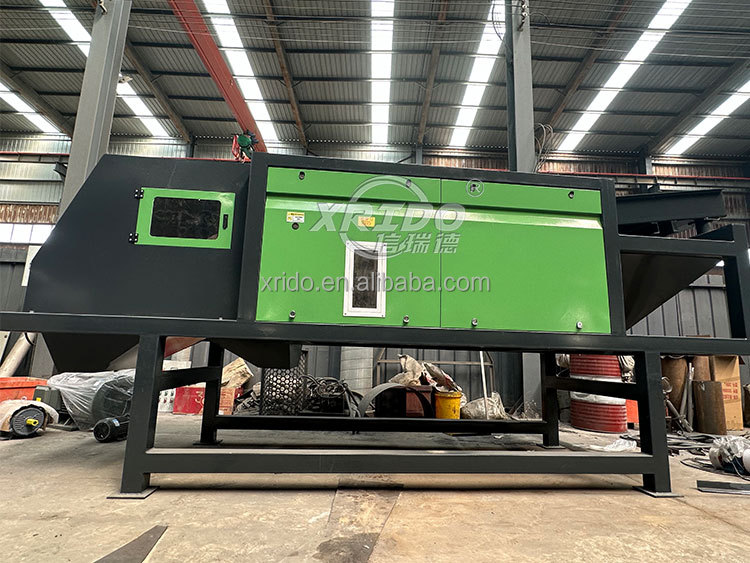

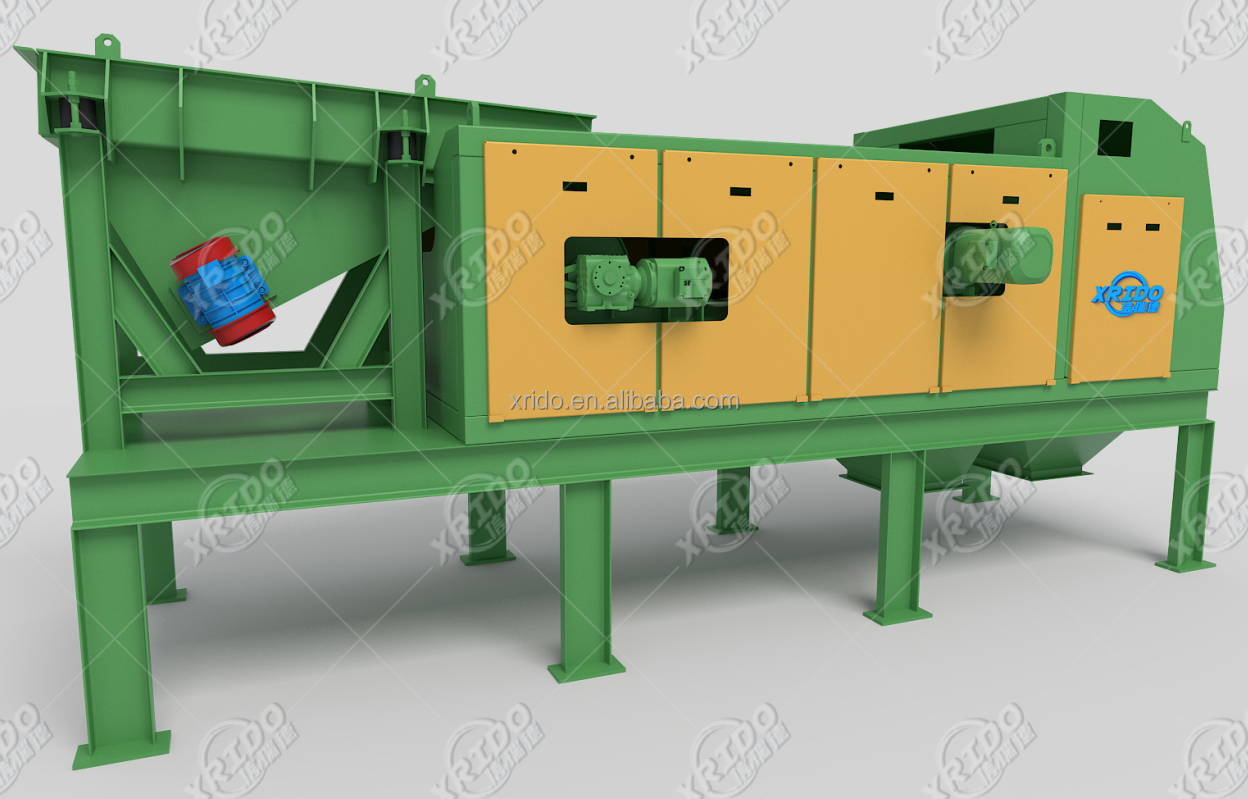

Eddy Current Separator Machine
The eddy current separator is applicable to the recovery of various non-ferrous metals such as urban domestic waste, industrial waste, electronic waste, broken glass, waste plastic doors and windows, urban wood waste, boiler bottom ash, multiple metal mixtures, waste automobiles (sliced by shredder) copper, aluminum, and material processing and sorting in the environmental protection industry.
Eddy Current Separator (Non-Ferrous Separator) is to separate non-ferrous metals by the induction principle (eddy current) of a high-frequency magnetic field. The powerful moving magnetic field on the surface of the drum is generated when the powerful permanent magnet inside the drum rotates at high speed, separating three types of materials: iron, non-metal, and nonferrous metals such as aluminum and copper.

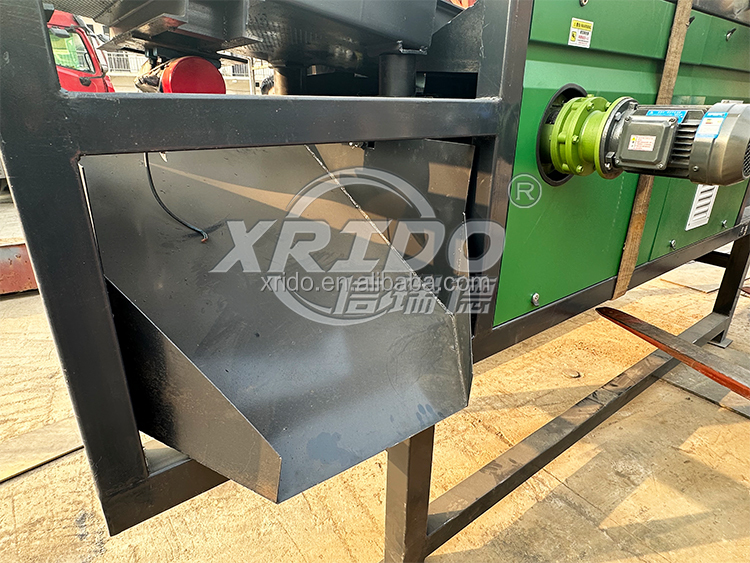

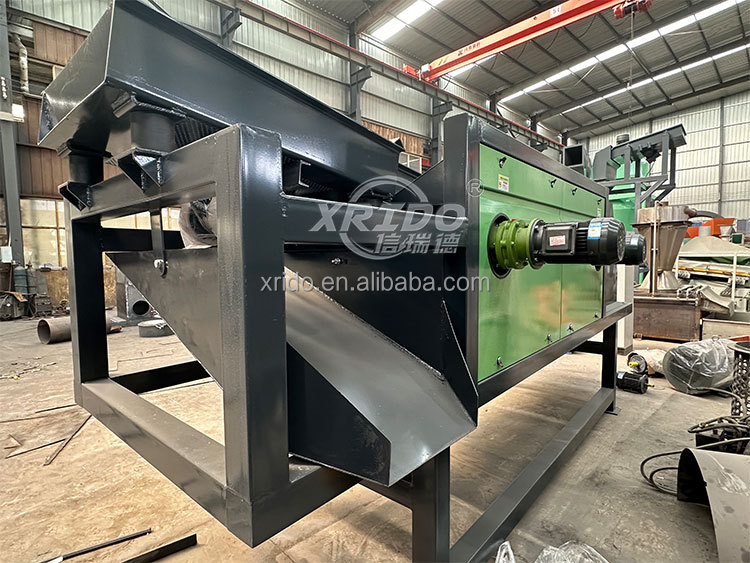

Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price
The Eddy Current Separator/Sorter (also known as copper aluminum separator and non-ferrous metal eddy current separator) is the metal and non-metal separation equipment newly produced by our company. The eddy current separator has a good separation effect on a variety of non-magnetic metals, can effectively implement automatic separation of non-metallic materials and non-ferrous metals, and can recover various non-ferrous metals. Realize the mechanization and automation of sorting process, reduce the labor cost of enterprises, and effectively increase the added value of products.
Product Paramenters
Model
Magnetic roller (φ)
Capacity (T/H)
Power (kw)
Size (mm)
XRD400
300
1-2
3+0.55+0.25
2885*1500*1693
XRD600
300
2-4
4+0.75+0.25
2885*1700*1695
XRD800
300
5-6
5.5+1.1+0.55
2950*1900*1695
XRD1000
300
8-10
7.5+1.5+0.55
2950*2100*1695
*This is the basic model of our Eddy Current Separator machine. Our factory manufactures customized machines according to the different requirements of different customers.
Details Images

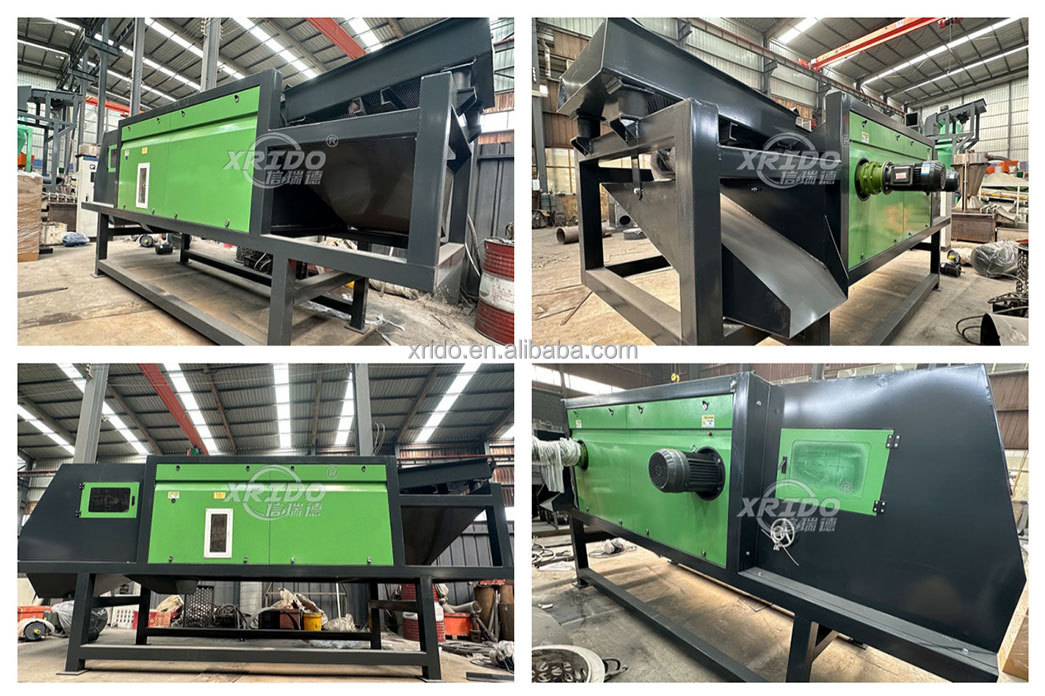

Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price
Triple protection for bearings
The bearings are sealed and highly corrosion resistant.Cooling with coolant prolongs service life.With thermal protection function, it automatically trips when the temperature is too high.
Stable magnetic source
It uses high-strength permanent magnet Nd-Fe-B as the magnetic source, with stable and lasting magnetic properties and unique magnetic syste arrangement, which can effectively sort 2mm2 fine materials.
Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price

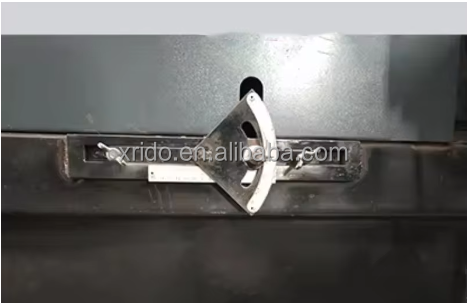

Frequency conversion control
The frequency conversion control belt speed is adjustable, the filter screen gap is adjustable, suitable for materials of
different volumes
Made of carbon steel
The fuselage is made of carbon steel with spraying technology,which is durable.

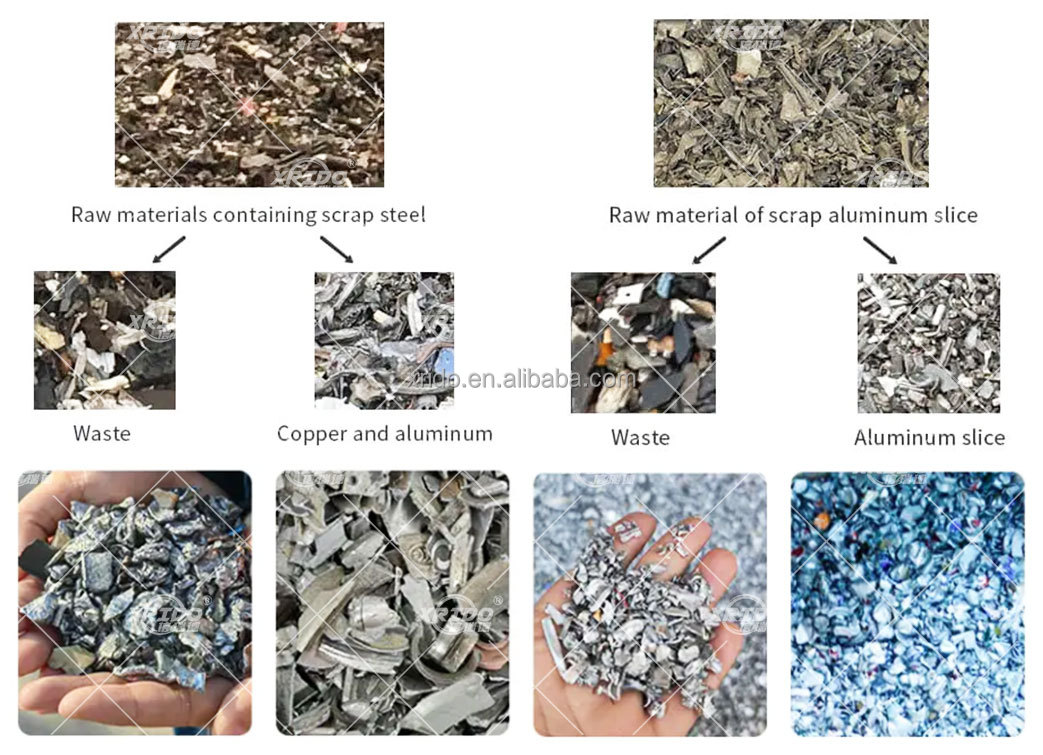

Working Principle
Eddy Current Separation (ECS) is the use of the different electrical conductivity property of material.the principle of sorting isto use a magnet composed of permanent magnets simplified and high-rotation Producing a magnetic field with alternatingchanges in the county ,when the metal with electrical conductivity pass the magnetic field , an eddy current itself will Alternatethe magnetic field is changed ,and the direction of the magnetic field generated By the rotation of the magneti is reserved ,insteadof no-iron metal (such as Aluminum ,copper )Will jump out in the direction of its selection due to repelling ,and thus with otherbroken glass,plastic Non-metallic substances materials are separated to achieve the purpose of sorting.
Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price

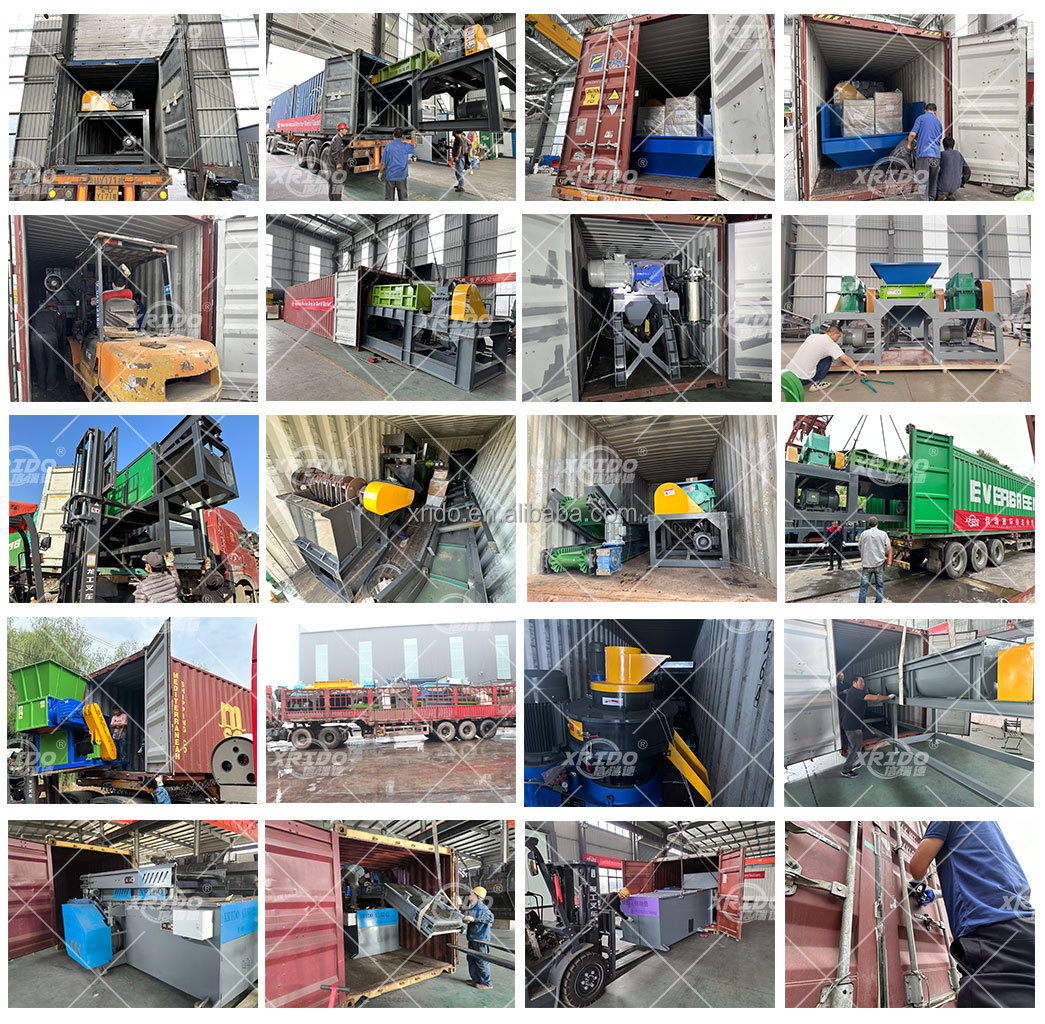

Product packaging
Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price
Our company's products are shipped to all over the world, making great contributions to environmental protection and resource recycling around the world. At the same time our customers can make considerable profits. This is the vision of our company and the common wish of every customer.

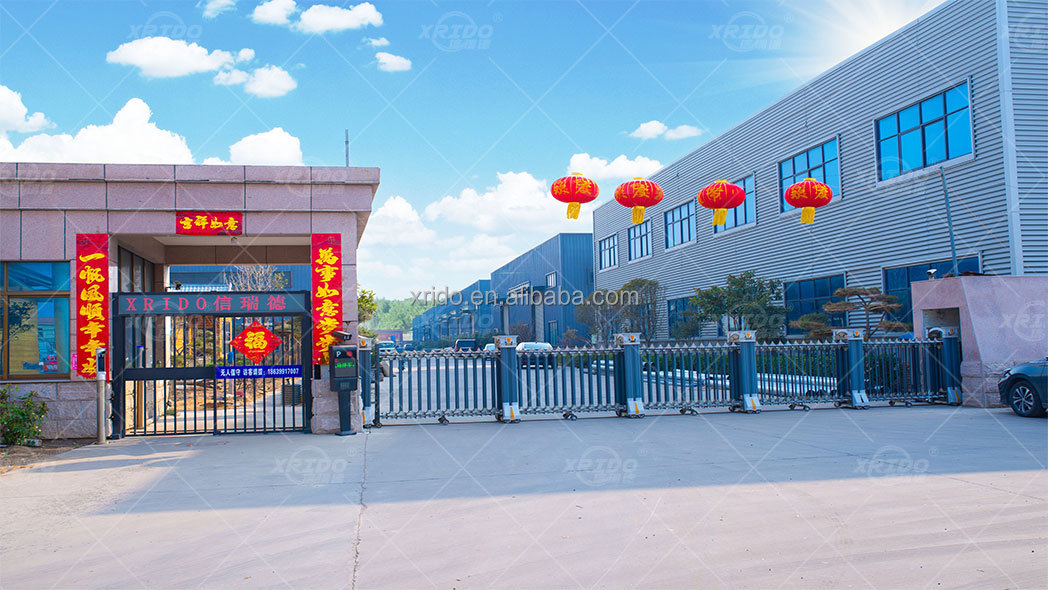

Company Profile
Our factory has a 20 years history of manufacturing customized machines for different clients with different requirements. The price of machine and quality are guaranteed. We have been working in the field of environmental protection and recycling machinery for more than ten years. Countless customers have visited our factory and gained a deeper understanding of our machines. We welcome every customer who is willing to learn more about our factory to visit the factory. You can be accompanied by an engineer to explain technical parameters and personally test the operating status of the machine. We are
committed to giving you the best service and experience.
Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price
Our factory has obtained many certificates and invention patents. We are always moving forward in the pursuit of technological innovation. Science and technology are the primary productive forces. Only by mastering core technologies can enterprises develop better and better. We keep moving forward on this road. We put continuous efforts to obtain more technological progress and recognition.
Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price
It's our honor to be trusted by our customers. It's also the vision of our company. We are constantly pursuing the satisfaction and recognition from our customers. We are looking forward for every opportunity of cooperation. We also provide is installation direction and perfect after-sale service. We take every opinions of our customers priciously. That's the most important way to improve our service and customers' experience.
Customizable for Customers Metal Sorting Eccentric Rotor Magnetic Eddy Current Separator Price
FAQ
Q: Do you accept Custom-made?
A: Yes, we can custom the Tire Shredder machine according to clients requirements.
Q: How can i get a suitable Tire Shredder machine?
A: Tell us your requirements, such as raw material, out put size, capacity etc, our engineer can recommend the suitable configuration and provide quotation for you.
Q: How long is your delivery time ?
A: 1 set for normal machine needs about 5 working days, if 1 or more containers, needs about 20 working days.
Q: How long is the warranty?
A: 1 year since the date of shipment, if parts failure or damage(because of the quality problem, except wearing parts), our company will provide these parts for free.
Q:What is your payment term?
A: T/T 100% before shipment, L/C at sign, or Trade Assurance order recommended.
